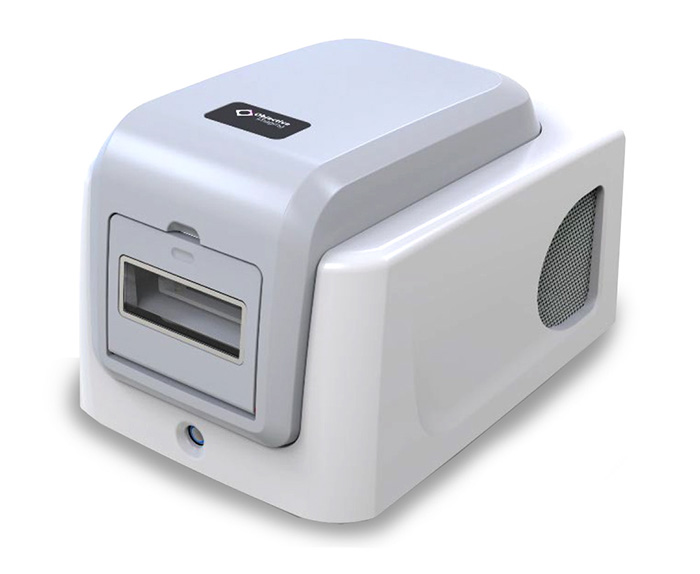

Glissando Desktop Scanner IVD
Fast, affordable whole slide imaging from Objective Imaging
The Glissando Desktop™ Scanner from Objective Imaging delivers fast, high-quality whole slide image acquisition in an affordable package. The compact footprint and simple, intuitive user interface make the Glissando Desktop Scanner the ideal platform for quick scanning of standard microscope slides.
Key Features:
- Exceptional image quality
- Fast scanning of whole slides
- Compact, convenient size
- Two standard glass slides or single double-width slide capacity
- 1D and 2D barcode reader
- Automatic tissue detection and focus setup
- Z-stack scanning modes
- Integrated Windows® control computer with Ethernet connection
- Efficient, intuitive software interface

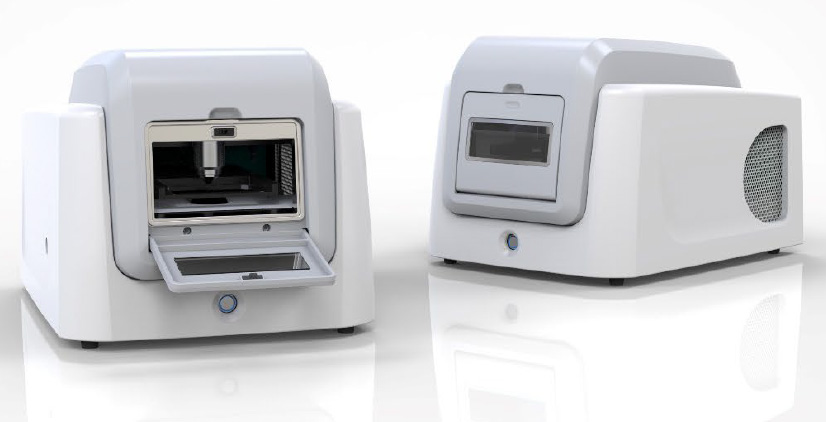

Objective Imaging Desktop Scanner
The Glissando Desktop Scanner integrates the latest automation technologies and high-quality components with our proven Turboscan™ scanning engine to provide an effective, reliable—and affordable—tool for the rapid acquisition of Whole Slide Images (WSI) from standard glass microscope slides.
The easy-to-use software’s intuitive design and automated tissue detection, focus setup, and barcode reading ensure excellent results, right out of the box.
Contact Objective Imaging for further details about the Glissando Desktop Scanner and other automated scanning products.
Specifications:
Slide Capacity:
Up to two 25×75 mm glass slides or single 50×75 mm glass slide
Scanning Engine:
Turboscan™ fast tiling technology with predictive focus
Tissue Detection:
Automatic region definition and focus setup
Scanning Objective Lens:
Single lens, 20X/0.75 Plan Apo -OR- 40X/0.75 Plan Fluor
Camera Sensor Size:
Up to 2048 x 2048 pixels
Scan Image Resolution:
0.55 μm/pixel (with 20X lens) -OR- 0.275 μm/pixel (with 40X lens)
Barcode Reader:
Image-based 1D and 2D (Datamatrix, QR Code)
Control Computer:
Integral Windows 10 Enterprise mini-PC with Ethernet connection
On-board Storage:
500 GB solid state drive
Physical Dimensions:
320 mm (W) x 297 mm (H) x 447 mm (D)
Electrical:
Universal AC input, 50/60 Hz
