Diverse, User-Friendly Design Combined with Outstanding Optical Performance
"Operational Ease Across All Aspects of Use"

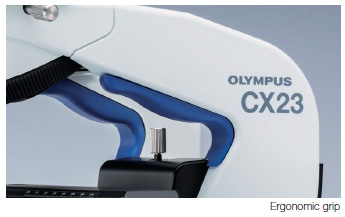

- Ergonomic grips add safety when retrieving the microscope from high places.
- Colored grips indicate appropriate places to hold the microscope.
- Smooth, rounded design eliminates all sharp edges.

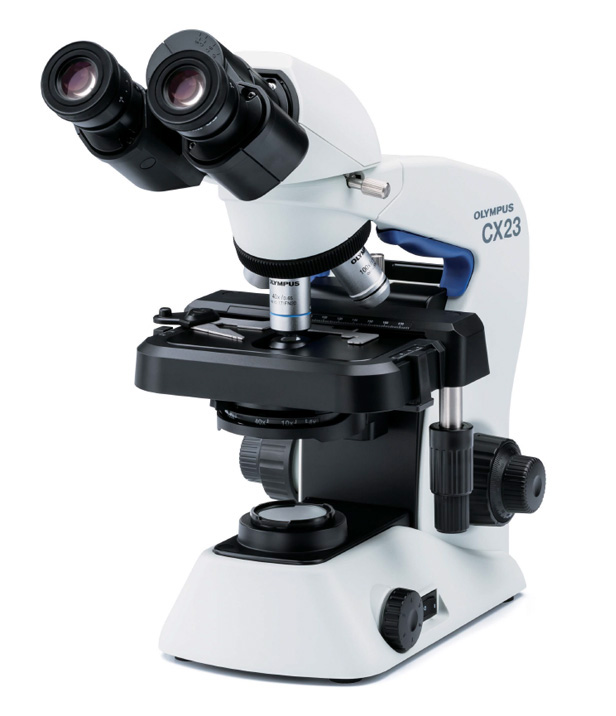

- The CX23 is one of the lightest weight microscope in its class, with a total weight of approx. 5.9 kg (13.01 lbs).

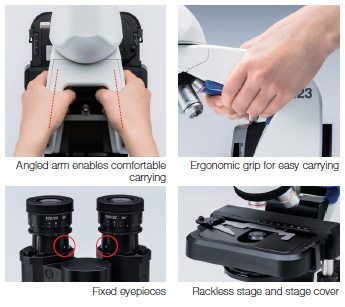

• The CX23 features a carrying arm angled to keep the wrists in a comfortable, neutral position.
• The eyepiece can be fixed in place to help prevent damage or loss when moved.
• A rackless stage and stage cover give safety and longtime operation.

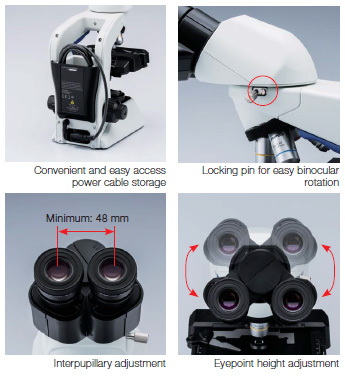

•A locking pin keeps the observation tube in place.
•Interpupillary adjustment from 48 to 75 mm enables personalized comfort for individual users.
•Adjustable eyepoint provides greater comfort for users of different heights.
•Left and right diopter adjustment enable optimal focus for each eye.
• The inward-facing revolving nosepiece allows for more space above the stage, enabling the easy setting and exchanging of specimens or adding of oil for the immersion objective.
• Objectives with long working distances give safety on specimens.
• The focusing knob offers durable movement with a coaxial design to enable precise coarse- and fine focus control. As a result, the stage can be quickly brought into focus by either the left or right side knob.
• A torque release function prevents damage in case excess force is applied to the coarse focusing knob or stage knob.

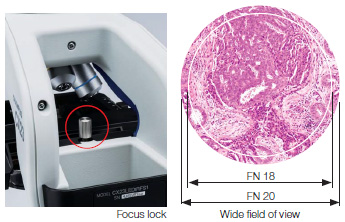

• The focus lock prevents objectives and specimen from any damage.
• Field number (FN) of 20 ensures a wide field of view.
• The CX23 features plan achromat objectives that preserve outstanding image flatness throughout the field of view.
• The LED light source provides long service time 20,000 hours, and offers low power consumption. Also, its reduced blue color preserves vivid colors on HE staining.

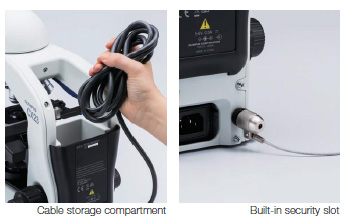

• A storage compartment on the back of the CX23 makes it easy to stow the power cable after use.
• An optional dedicated wooden case is also available.
• A built-in security slot allows attachment of an antitheft cable for when the CX23 is left unattended.
