Add colors to your laboratory with MAGNUS MX21i PRO
Where Vision Meets Precision: Your Clinical Microscope Solution
Key Features

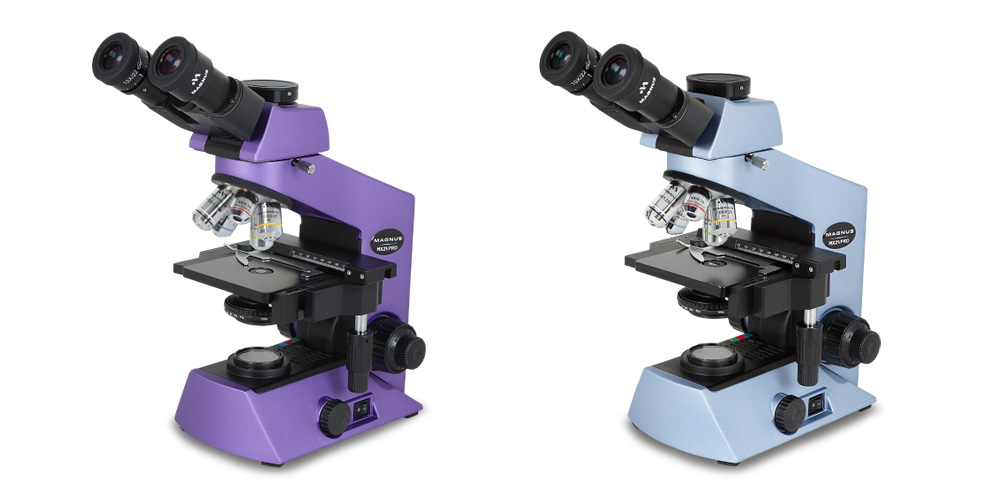

- 2 New Colors: Premium Blue Soft feel & Premium Feather Purple Soft Feel
- Quintuple nosepiece
- 20x Plan Achromat Objective standard
- Butterfly head – Adjustable upwards & downwards
- Fixed TR head with Beam splitter of 70:30
- 10x eyepiece with F. No. 22
- 12V Adapter (Standard) with Optional Adapter basket (when not in use)
- Auto Off feature
- Freedom by default ( LED indicator)
- Anti theft security lock
Specifications
Head: High & Low eyepoint adjustable , Trinocular Sidentopf head with interpupillary and diopter adjustments.
Nosepiece: Quintuple click-stop forward revolving mechanism with multiple ball bearings, elastic nosepiece grip-ring.
Trinocular head with 70/30 light pass mechanism.
Eyepiece lens: 10x F.O.V.22mm with rubber eye guards.
Objectives: INFINITY PLAN ACHROMAT 4x, 10x, 20x , 40x and 100x oil Spring loaded.
Focusing system: Co-axial coarse and fine Focusing knobs mounted on fine ball bearings for extra smooth movements.
Stage: wire driven , Right hand Rectangular mechanical stage with Co-axial X and Y movements.
Illumination: LED with battery backup up to 06-08 hrs. with battery usage indicator.
Condenser: Abbe type NA 1.25 with iris diaphragm.
Optional Attachments: EPI Led Fluorescence, Dual Head, Phase Contrast, Dark Field wet & Dry, Simple polarizer, Digital USB Cameras.
