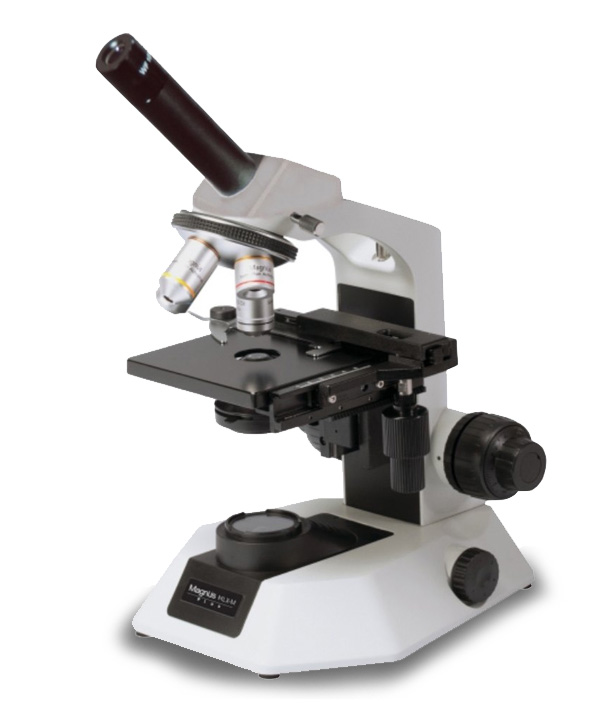

ENHANCE THE LABORATORY TEACHING WITH CLASS MAGNUS STUDENT MONOCULAR MICROSCOPE - MODEL MLXM PLUS
Key Features
- Anti-fungus treatment
- Easy access for lamp replacement
- Choice of halogen and LED illumination
- Parfocal and centered stain free optics
- Optics with multi-layer coating and anti-fungus treated
Specifications
Head: Monocular 45 degree inclined head.
Nosepiece: Quadruple click-stop revolving mechanism with multiple ball bearings, elastic nosepiece grip-ring.
Eyepiece tube: Anti-mold monocular 45 degree inclined built-in prism type.
Eyepiece lens: 10x F.O.V.18mm
Objectives: SEMI PLAN ACHROMAT 4x, 10x, 40x, 100x oil Spring loaded.
Focusing system: Co-axial coarse and fine Focusing knobs mounted on fine ball bearings for extra smooth movements.
Stage: Right hand Rectangular mechanical stage with Co-axial X and Y movements with focus lock mechanism and dual slide holder.
Illumination: Halogen / LED / LED with battery backup with intensity controller.
Condenser: Abbe type NA 1.25 with Iris Diaphragm.
