Spin Tissue Processor for tissue infiltration

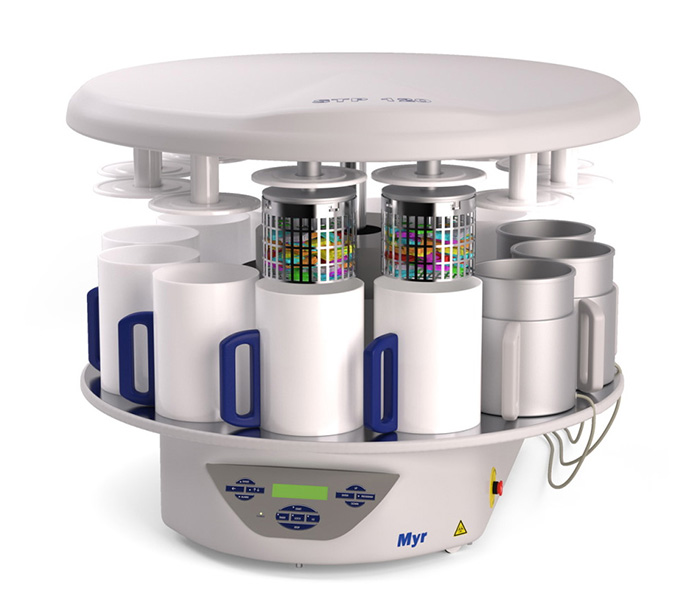

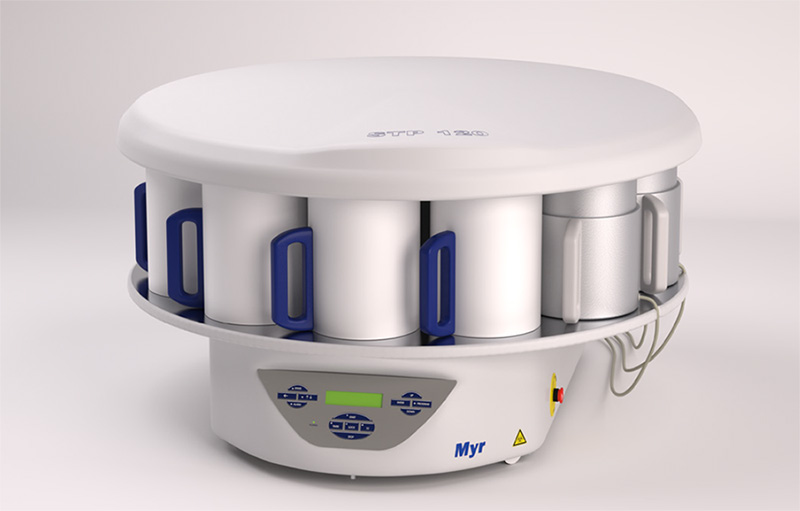

Myr Spin Tissue Processor STP 120 has been developed to meet the requirements of every single laboratory. The state-of-the-art technology and the unsurpassed processing method of the STP 120 qualifies it as the most successful Spin Tissue Processors ever. More than 2.000 units installed around the world confirm its leading position.
A worldwide unique technique
Tissue processing is a technique that uses alcohols to remove water from tissues and replace it with a medium that allows sectioning of tissue. Several methods are used to achieve this. Myr Spin Tissue Processor STP 120 fulfills it in a patented and unique technique that combines several movements for the tissue to achieve perfect infiltration results. This is possible thanks to the world’s best spin processing method.

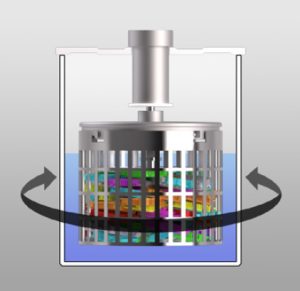

ROTATIONAL AGITATION
The basket with the cassettes is immersed into the reagent vessel. In this position, the basket turns at 60 rpm and changes the rotational direction every 60 seconds. The rotational agitation achieves a perfect infiltration of tissue, an homogeneous mixture of the reagents and a reduction of processing time. To get better results, user can start optionally a shaking process.

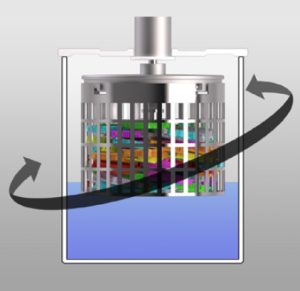

SHAKING
This movement can be optionally activated on the control panel and allows the basket to perform an up-down movement inside the vessel that combined with the rotational agitation fulfills an helicoidal movement that increases infiltration quality at a high degree of precision. At the end of this process, baskets start centrifuging.

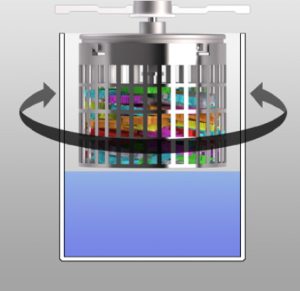

CENTRIFUGING
This function is activated as soon as the infiltration time comes to an end. The basket rises above the reagent’s level but rests inside the vessel. For a period of 60 seconds it starts whirling at 210 rpm and changes the rotational direction every 15 seconds. This process allows tissue to be optimally drained and avoids carry-over of reagents from one vessel to another.
Ergonomic control panel
The buttons of the control panel are arranged ergonomically for easy handling. The LCD display shows all the parameters throughout the process, such as programm number, vessel, remaining time, start time, start delay, total duration of the programm, rotational agitation and shaking, basket’s centrifuging, temperature of paraffin baths, date and time.
Easy handling
The instrument has capacity to store up to 10 different programs that can be freely set up by the user. Each one of the programs can be started in immediate or delayed mode, without time limit. The instrument can easily be rotated via the four rollers mounted on the base. This allows the user to have fast and safe access to each one of the vessels.
