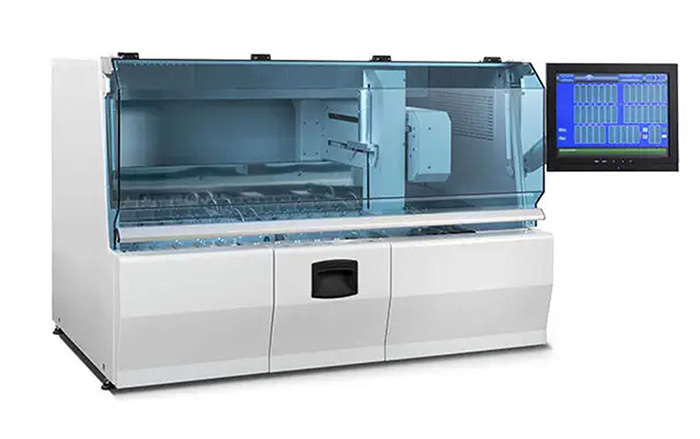

AUS2 Automatic Slide Stainer with XY Translator - Completely Programmable
Multi-basket-protocol for histology and citology slide staining. The Intelsint AUS is a modern high throughput XY stainer, specifically designed for the operators safety and protection.

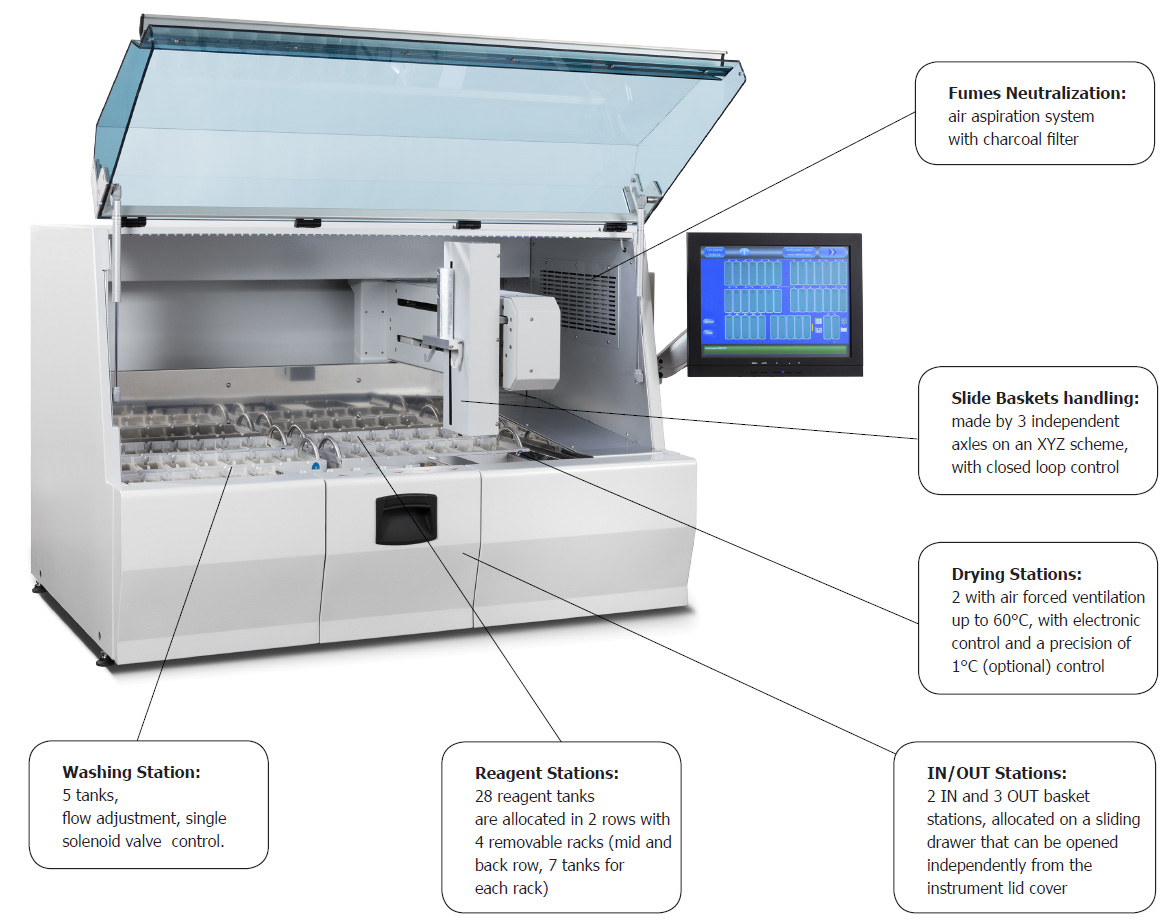

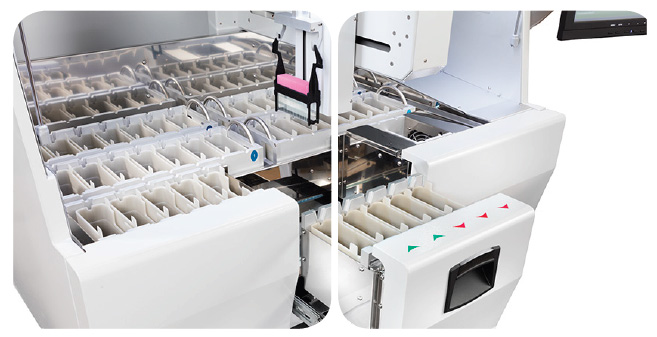

A total of 40 stations are available distributed on 3 rows. 28 reagent tanks are allocated in 2 rows with 4 removable racks (mid and back row, 7 tanks for each rack), an additional front row contains 5 tanks for flowing water, 2 input and 3 output tanks on a sliding-drawer with baskets sensors, the remaining 2 positions of the front row are fitted with warm air slide dryers.
All the structural internal parts are made in high quality stainless steel.
An integrated computer controls all operations and is endowed with a large touch-screen color monitor. The advanced software handles multiple staining protocols and bath schemes, with a graphic representation of the work in progress. The HMI is clear and intuitive. Standard keyboard and mouse can be connected for who does not like touch-screen operations.
Automatic identification of the basket histologic - cytologic
The AUS2 is able, thanks to an optional feature, to recognize if the basket inserted into the loading station is loaded with histologic or cytologic slides.
Between the 18 different protocols present in the stainer it is possible to define a protocol specific for histologic stains and one for cytologic stains.
The instrument will automatically select and launch the corresponding one when he detects the tipe of basket.
This feature allows to reduce any possible error during the loading of the unit and optimizes the loading operation of the user.

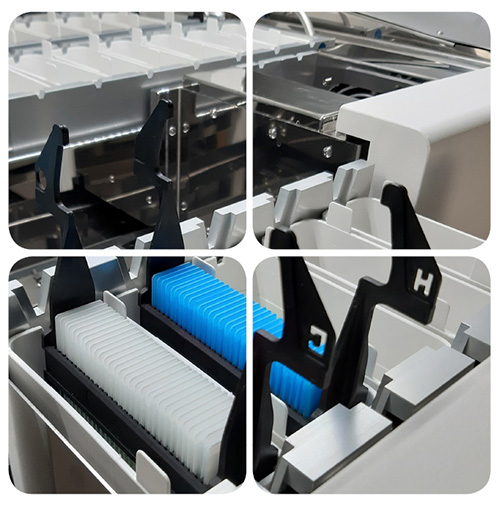

For this particular function special basket have been created, and have been marked with the letter “H” for histologic samples, and with the letter “C” for cytologic ones.
